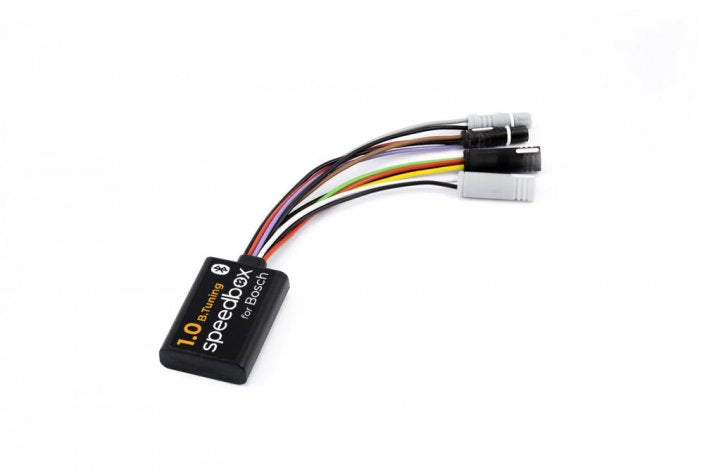

SpeedBox 1.0 B.Tuning for Bosch (Smart System)

SpeedBox B.Tuning is an advanced tuning solution with Bluetooth connectivity and mobile app integration, designed specifically for e-bikes with Bosch Gen4 motors and Smart System. It enables enhanced riding flexibility while giving you full control and visibility through the SpeedBox App.

Key Features & Functionality

• Removes speed limiter for a more flexible riding experience
• Bluetooth-enabled connection between your e-bike and smartphone
• Displays real speed values directly within the SpeedBox App
• Compatible with Bosch Gen4 motors and Smart System
• Seamless integration with e-bike display and controls

Speed Display Logic

When using SpeedBox B.Tuning, the bike display shows adjusted values above 22.2 km/h:

• 22.3 on display = actual speed 23 km/h
• 23.1 on display = actual speed 31 km/h
• Accurate speed and ride data are always visible in the SpeedBox App

How SpeedBox B.Tuning Works

• After installation, access the menu and set the correct wheel circumference
• Activate tuning via:
  • SpeedBox mobile app, or
  • WALK assist function (hold the “-” button)
• Activation confirmation: display shows 9.9 km/h
• Deactivation: repeat the process (display shows 2.5 km/h)
• If WALK assist is unavailable:
  • Activate/deactivate using button sequence: + - + -

App Setup & Security

• Set a PIN code during first app use for secure access
• Create a service password for recovery or changes
• Requires Bluetooth 4.0 or higher on your smartphone

Smart Countdown System

• Automatically runs after each ride to ensure correct data synchronisation
• Display shows increasing riding time during countdown
• Once completed, correct distance is displayed
• Process can be paused but should run regularly to maintain optimal performance

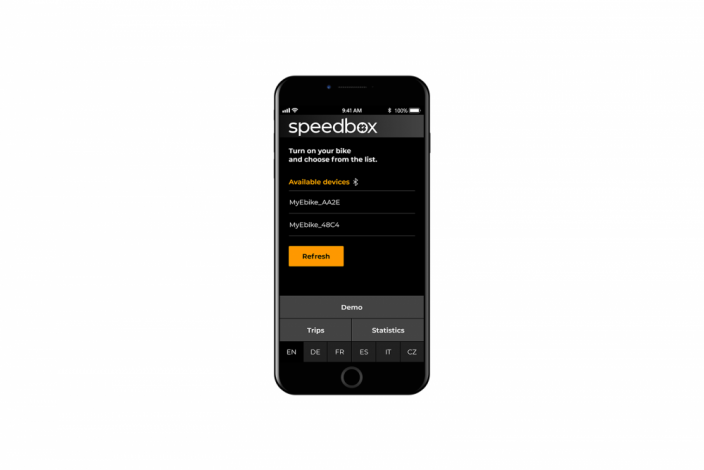

SpeedBox App Features

The SpeedBox App enhances your riding experience with advanced tracking and control:

• Tuning activation and control
• Custom speed limit settings
• Trip tracking and ride history
• Invisible mode functionality
• Motor diagnostics and performance monitoring

While the device operates independently, the app provides a complete overview of your ride data and performance trends.

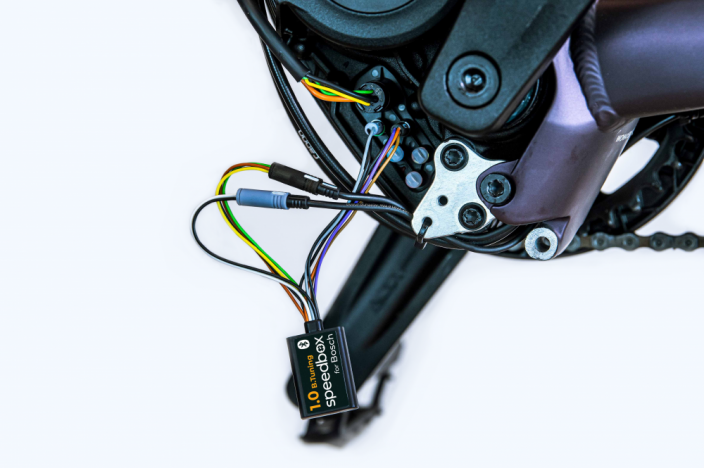

Installation & Assembly

• Uses original connectors for secure and accurate installation
• Simple plug-and-play setup with guided instructions and videos
• Easy removal and reinstallation process
• Recommended to ride at least 1 km before activating tuning on a new bike

Important: Always connect male and female connectors correctly in the direction of the lock. Do not rotate connectors during installation.

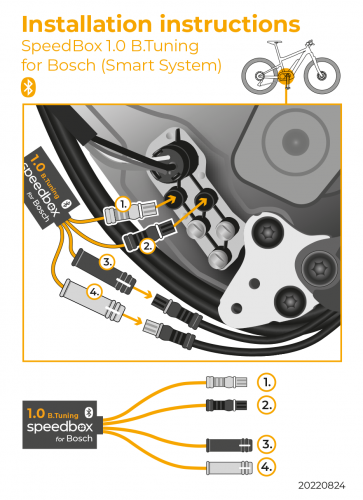

Installation Guide & Video

Detailed installation instructions are available below:

Important Safety Information

• Use of modified e-bikes may be restricted on public roads depending on local laws
• Designed for use on private property at your own risk
• May void your e-bike manufacturer warranty
• Always use appropriate safety gear while riding

If you lose your PIN or service password, you can use the official recovery service.

Software Update Recommendation

• Uninstall SpeedBox before updating your e-bike software
• Perform the update
• Reinstall SpeedBox after completion
